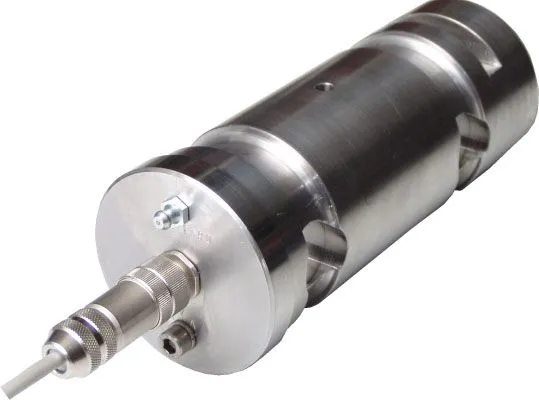

Load pins
The classic installation in sheaves or rope end attachments. The force is measured along the direction of the resultant, suited to retrofitting load measurement into existing structures.
Installation in sheaves or rope end attachments, machined from stainless steel and customised to the specific installation requirements.
Measurement principle
The load pin replaces a load-bearing structural pin and measures the transverse force along the direction of the resultant. Inside the pin, the shear-stress-induced deformations are picked up by four strain gauges (SG) wired as a full bridge and output as a bridge signal.
Geometry, bearing surfaces and connection are matched to the installation. This makes it possible to retrofit a load measurement into existing structures without altering their load-bearing behaviour.
Technical data
- Rated force
- 5…2,000 kN
- Material
- Stainless steel
- Geometry
- customer-specific
- Operating temp.
- −25…+70 °C
- Operating temp. (opt.)
- −40…+80 °C
- Output
- SG bridge ~1.5 mV/V
- Output (opt.)
- 4…20 mA
- Connection
- Fixed PVC cable
- Connection (opt.)
- PUR or M12
- IP rating
- IP 65 (EN 60529)
- IP rating (opt.)
- IP 68
- Redundant version
- available
- Lubrication bore
- conical / flat nipple
- Sealed grooves
- on request
- ATEX certification
- on request
Datasheet: on request
Application examples
- Container bridges: hoist and crab travel
- Plant and machinery construction: special hoists
- Sheaves in crane construction
- Lifting equipment: crane and elevator construction
Other force transducers
- Tension links
- Direct tensile force measurement in the rope termination, rated loads 0.5 to 200 t.
- Wire rope tension sensors
- Indirect load measurement on the hoist rope without breaking the rope.
- Strain transducers
- Retrofit measurement on beams and frames using clamp mounting.
Enquiry
We work out the geometry, rated force, and connection together. Get in touch.
