Overload protection
Mandatory safety device for hoists of every kind, built in fail-safe technology. From a simple analogue trip relay through to digital control.
Which variant for which hoist
All four units pick up the signal from a strain-gauge bridge sensor, compare it against configured thresholds and trip via safety relays. The architecture is fail-safe: a fault in the measurement path leads to a safe shutdown, never to release of an excessive load. Thresholds are set without special tools directly on the device.
R-0311 and R-0312 cover simple overload trip with one or two relay contacts. R-0313 adds a current-loop output for the PLC; R-0316 adds a second current input with total-load calculation on top. For more complex installations we recommend the digital MVD-0485 or the memory-configurable SKS-0586.
Models

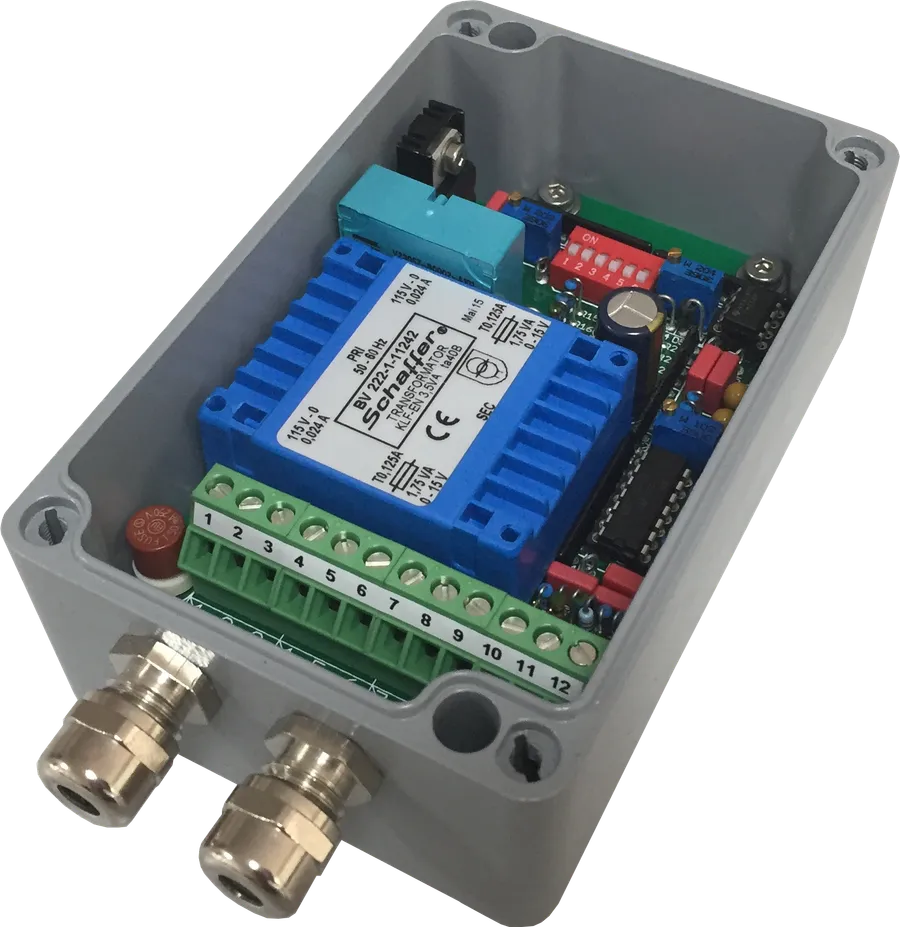

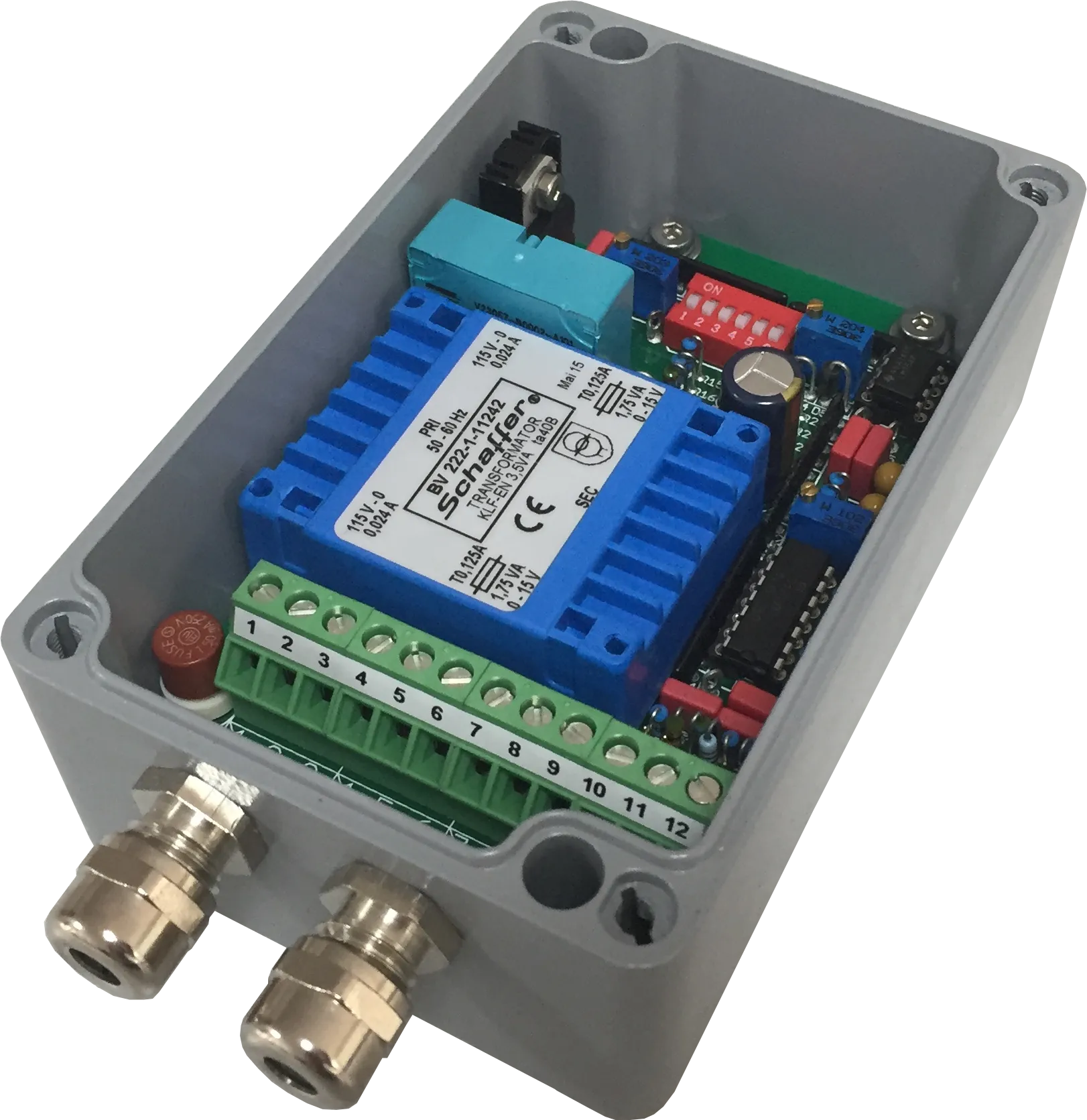

Compact overload protection Type R-0311
- Input
- 1× strain-gauge bridge
- Supply
- 230 V AC (50/60 Hz); optional 24 V DC or 110 V AC
- Switching contacts
- 1× relay (changeover)
- Functions
- Overload
- IP rating
- IP 65 (EN 60529)
- Material
- Die-cast aluminium
- Dimensions
- 125×80×54 mm
- Operating temperature
- −25…+70 °C, optional −40…+80 °C
Options
- ATEX certification
Simple setup, no special tools required.
Datasheet: on request

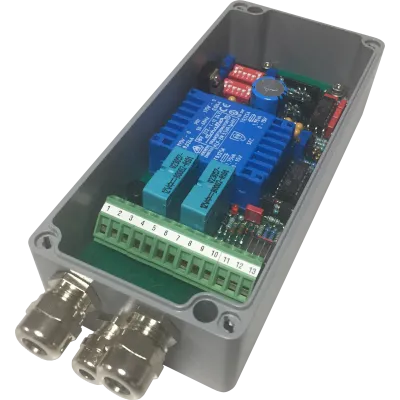

Compact overload protection Type R-0312
- Input
- 1× strain-gauge bridge
- Supply
- 230 V AC (50/60 Hz); optional 24 V DC or 110 V AC
- Switching contacts
- 2× relays (normally open)
- Functions
- Overload, slack rope
- IP rating
- IP 65 (EN 60529)
- Material
- Die-cast aluminium
- Dimensions
- 175×80×54 mm
- Operating temperature
- −25…+70 °C, optional −40…+80 °C
Options
- ATEX certification
Datasheet: on request

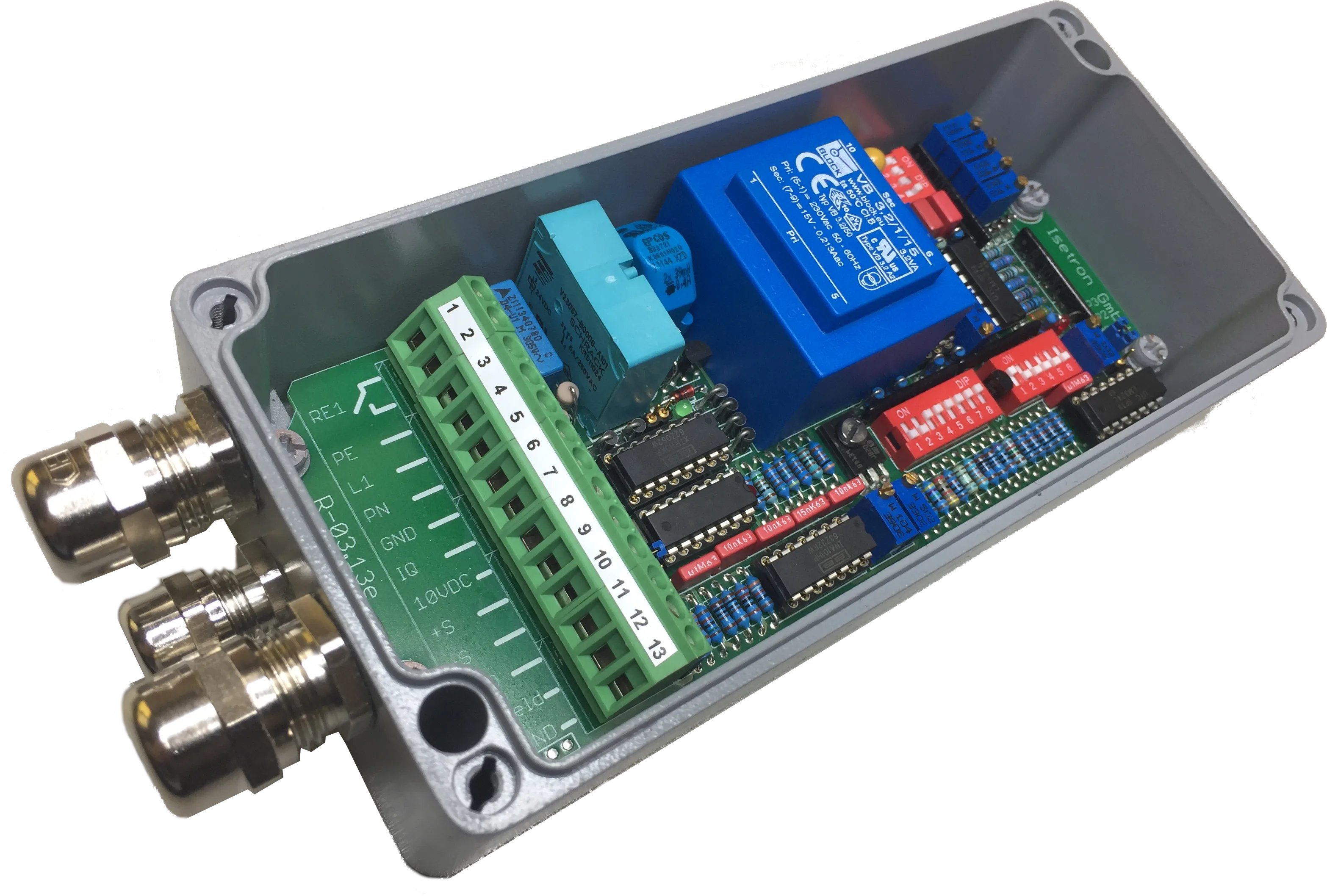

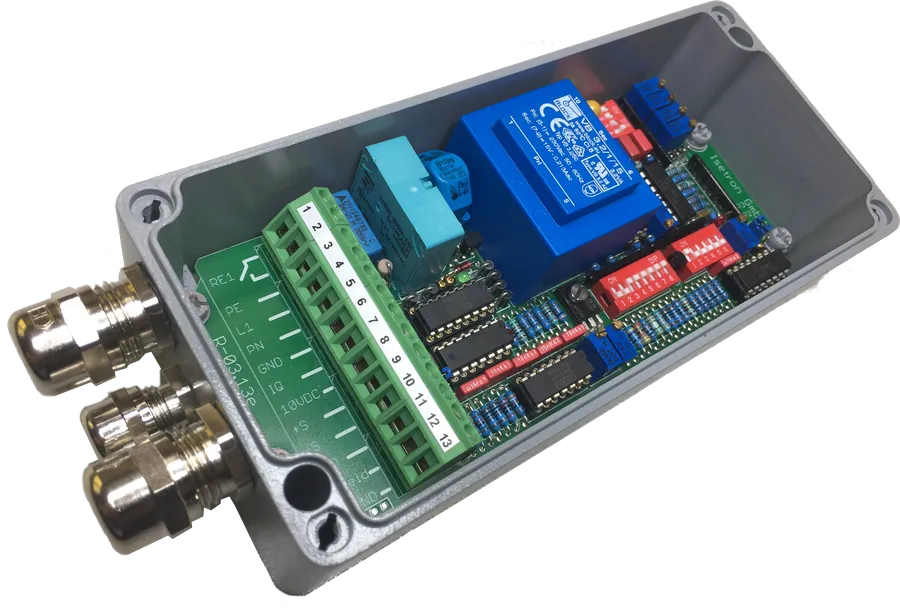

Compact overload protection with current output Type R-0313
- Input
- 1× strain-gauge bridge
- Supply
- 230 V AC (50/60 Hz); optional 24 V DC or 110 V AC
- Output
- Current loop (4…20 mA)
- Switching contacts
- 1× relay (changeover)
- Functions
- Overload, slack rope; current loop for PLC connection
- Dimensions
- 175×80×54 mm
Suitable for retrofitting strain-gauge sensors to a current-loop signal for the PLC.
Datasheet: on request

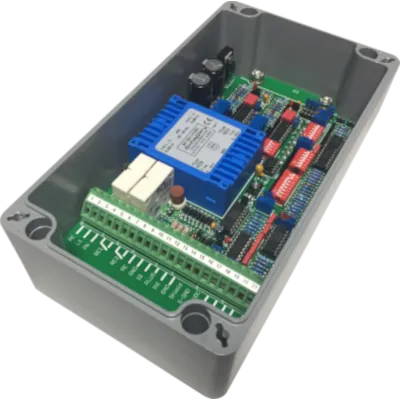

Compact overload protection with current output Type R-0316
- Input
- 1× strain-gauge bridge, 1× current loop (4…20 mA)
- Supply
- 230 V AC (50/60 Hz); optional 24 V DC or 110 V AC
- Output
- Current loop (4…20 mA)
- Switching contacts
- 2× relays (normally open)
- Functions
- Overload, slack rope; additional current input, total-load calculation
- IP rating
- IP 65 (EN 60529)
- Material
- Die-cast aluminium
- Dimensions
- 220×120×80 mm
- Operating temperature
- −25…+70 °C, optional −40…+80 °C
Options
- ATEX certification
Extends the R-0313 with a second current input and total-load calculation.
Datasheet: on request
Application examples
- Simple winches with relay-based overload trip
- Hoists with additional slack-rope detection
- Retrofitting a PLC interface via current-loop output
- Plants with two load paths and total-load calculation (R-0316)
Other measurement electronics
- Load spectrum counter
- Digital MVD-0485 and memory-configurable SKS-0586 with FEM 9.755 evaluation.
- Measurement amplifiers
- Convert the SG bridge signal into a 4…20 mA current loop.
Enquiry
Which variant fits your installation, we’ll work it out up front. Get in touch.
