Load spectrum counter

Operating principle

Both units sort the loads that actually occur in operation into FEM 9.755 classes and from those derive full-load hours and residual service life. The classes, thresholds and switching points are set up password-protected directly on the device, and the current residual service life is readable from the display at any time.

Residual service life can be reported via the device display, a serial interface (RS-485), an analogue current signal (4…20 mA), or a relay contact when a configured threshold is reached. This allows the FEM evaluation to be tied into an existing plant control system or maintenance schedule.

Models

×

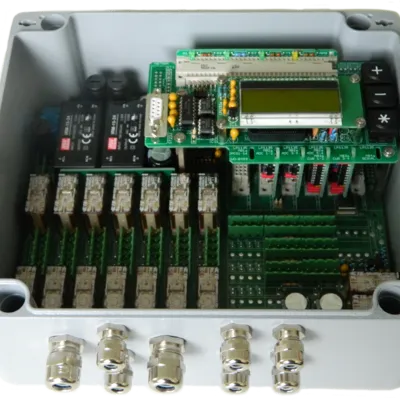

Digital overload protection with load spectrum counter Type MVD-0485

Input

1…4× current loop (4…20 mA)

Output

0…4× current loop (4…20 mA)

Switching contacts

6 / 14 / 22× safety relays (normally open, monitored); changeover on request

Supply

110…230 V AC (50/60 Hz); optional 24 V DC

Functions

Overload, slack rope, cross-comparison, and more

IP rating

IP 65 (EN 60529)

Material

Die-cast aluminium

Dimensions

230×200×111 mm; 330×230×111 mm with 22× relays

Operating temperature

−25…+70 °C, optional −40…+80 °C

Options

• Load spectrum counter per FEM 9.755
• Serial interface (RS-485)
• Digital switching inputs
• ATEX certification

Configuration via buttons on the unit or on a PC via RS-232.

Datasheet: on request

Application examples

• Series hoists with mandatory residual-lifetime determination
• Complex installations with multiple hoists and total-load calculation
• Cranes with radius and load-curve calculation (SKS-0586)
• Plants tied into a control room or maintenance system via RS-485
