Large-digit displays
LED display for shop-floor operation. Typically deployed on overhead cranes, harbour cranes, and container bridges.

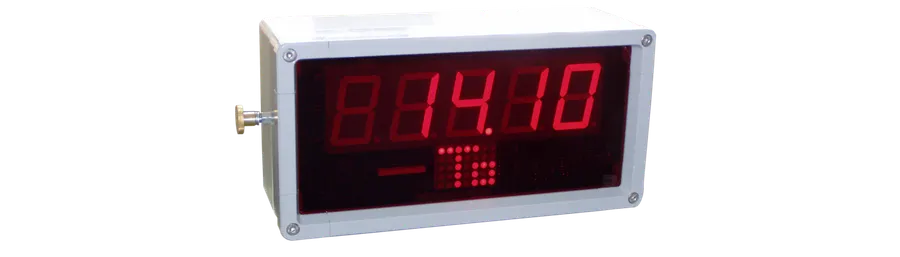

LED large-digit display for overhead, harbour, and container-bridge cranes. Reading distance up to 50 m, five-digit display.
When a large-digit display pays off
Thanks to their size and luminosity, these displays suit applications where the load weight has to be readable from significant distances. Combined with a horn or another acoustic warning element they deliver unambiguous status information to floor and operating personnel alike.
The display is driven via current loop and pairs directly with our overload protection units or measurement amplifiers. Functions are configured via buttons on the unit, with no PC or special software required.
Technical data
- Reading distance
- 5 m
- Optional
- 20 m / 50 m
- Display length
- 5 digits
- Digit colour
- red
- Colour (opt.)
- green / yellow
- Input
- 1…2× 4…20 mA
- Input (opt.)
- RS-485
- Connection
- Spring terminals
- Connection (opt.)
- M12 connector
- Supply
- 230 V AC
- Supply (opt.)
- 110 V AC / 24 V DC
- Tare
- optional
- Sum function
- optional
- Acoustic alarm
- optional
- Bypass switch
- optional
- Mounting bracket
- available
Datasheet: on request
Application examples
- Overhead cranes: load indication for floor personnel
- Harbour cranes and container bridges: readable from a long distance
- Loading and logistics areas with line of sight to the hoist
Other displays
- Cabin displays
- Backlit graphic display for the operator position, individually configured.
- Overload protection
- Drives the display directly via current loop and switches off at the limit value.
Enquiry
Sizing of the display unit and digit height depend on the application. Get in touch.
