Inclination sensors
Boom-angle and tip-over safety monitoring, manufactured to customer specification.
Operating principle
Two jobs, two units
The two sensors cover two classic tasks in crane monitoring. The E-0227 measures boom angle in the 0…90° range and outputs an analogue current signal that feeds a load-curve calculation or display. The E-0228 is a two-axis tip-over safety monitor in a narrow range of a few degrees, with its own LED display and relay cut-off.
Both units are sized to the specific crane structure and use case, from the mechanical fixing through to the calibration of the switching thresholds.
Technical data
Models
Inclination sensor Type E-0227
- Measuring range
- Boom angle 0…90°
- Resolution
- 0.05°
- Output
- Current loop (4…20 mA)
- Operating temperature
- −20…+60 °C
Robust against signal fluctuations.
Datasheet: on request

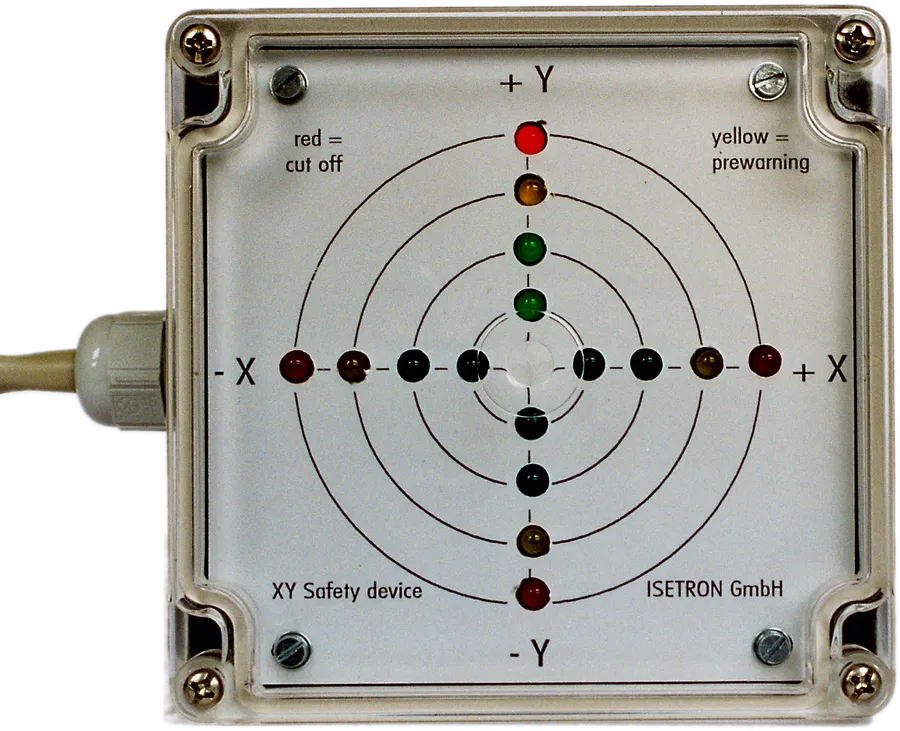

XY tip-over safety monitor Type E-0228
- Measuring range
- Up to 10°
- Display
- XY LED display in 0.5° steps
- Output
- 2× relay cut-off; optional 4…20 mA
- Operating temperature
- −20…+60 °C
Datasheet: on request
Applications
Application examples
- Boom angle on harbour cranes and mobile cranes
- Input signal for load-curve and radius calculation
- Tip-over safety monitoring on mobile lifting equipment
- Stand monitoring on supports and platforms
Enquiries
Enquiry
Sizing to your crane structure and use case. Get in touch.
